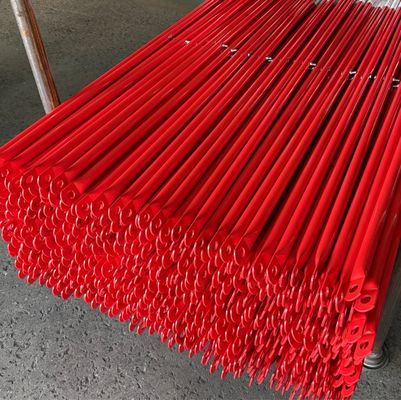

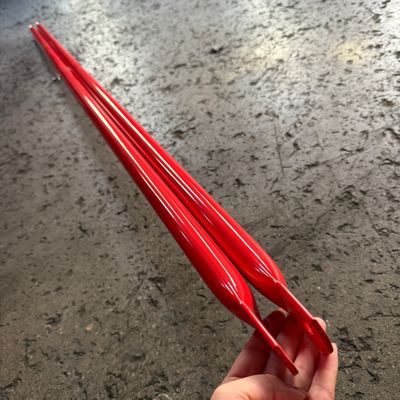

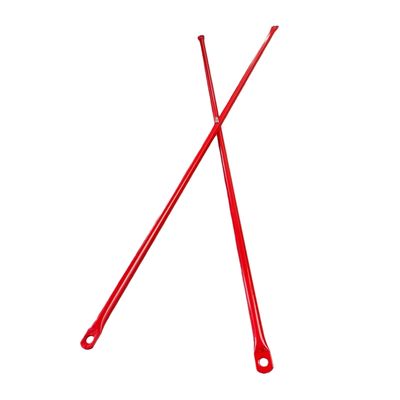

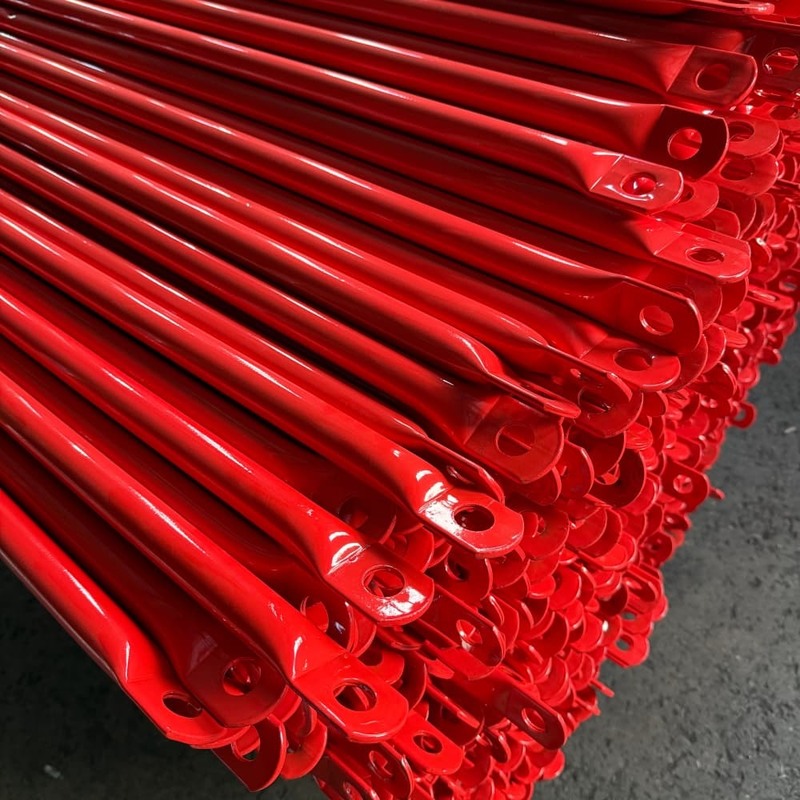

20MM Red Galvanized Steel Frame Scaffolding Cross Braces

Frame Scaffolding Parts Scaffolding Cross Brace

◆Product Overview

Scaffolding cross brace are used to connect the scaffolding frame, made of pre-galvanized pipe. with good anti-rust capacity and different size , our cross brace suit for both developed market and undeveloped market.

◆Product Parameter

Accessories type	Cross brace	Cross brace	Cross brace
Sample
Material	Q195 Steel	Q195 Steel	Q195 Steel
Surface treatment	Pre galvanized,silver color
Diameter	20mm	22mm	25mm
Thickness	1.0-1.3mm	1.0mm	1.0-1.2mm
Length	1928/2045/2198mm or customized
Weight	1.8-2.6kg	2kg	2.2-3kg

◆Product Advantage

A.Stronger:

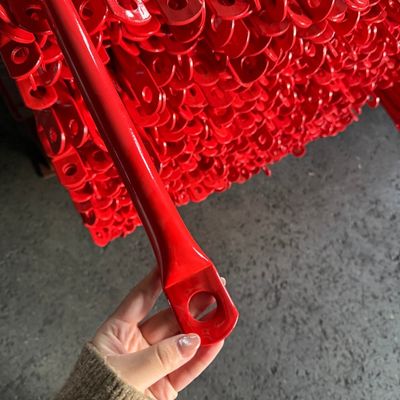

1.Our cross brace has knots on both size,and could have 3plate in the middle. This make the cross brace more stronger.

2.Our bottom part is gentle and not totally flat,it's stronger and not easy to broke.

B.Various Types:Customized thickness and length are available

◆We also manufacture

1. Formwork accessories: formwork tie rod,waller plate,anchor nut,wing nut,water stopper,hex nut,climbing cone nut,formwork clamp,rapid clamp etc.

2. Scaffolding accessories: Hollow/Solid adjustable base jack, U head, universal base jack,adjustable jack nut,thread rod.

3. Steel prop parts: Prop sleeve, prop plate, prop nut, prop pins.

4. Cuplock parts: Top cup, bottom cup, ledger blade.

5. Ringlok parts: Ringlock rosette, ledger end, brace endwedge pin.

6. Scaffolding Couplers : Pressed and drop forged swivel coupler, pressed or drop forged fixed coupler

7. Specail products : U clip , hook set, small base plate etc.
